KF5M9B: Piston Pumps (Mud) | Pratissoli

» Products » Piston Pumps (Mud) » KF5M9B

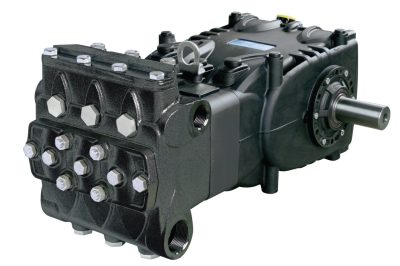

KF5M9B

Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
KF5M9B	177	46.7	600	8	80	1160	36.8	27	597x367x285	70

Spare Parts List

Performance curves

Performance curves

Overall dimensions

Hollow shaft (spline) – vers. B

Hy-Pack version + piston motor 84cc

Hy-Pack version + orbital motor 100cc

Hy-Pack version + orbital motor 200cc

Hy-Pack version + orbital motor 120cc

Male shaft (key)

CAD Files

Repair manuals

Use manuals

Declaration of incorporation – Hy-Pack version

Instructions for use – Hy-Pack version

Use and Maintenance Manual
