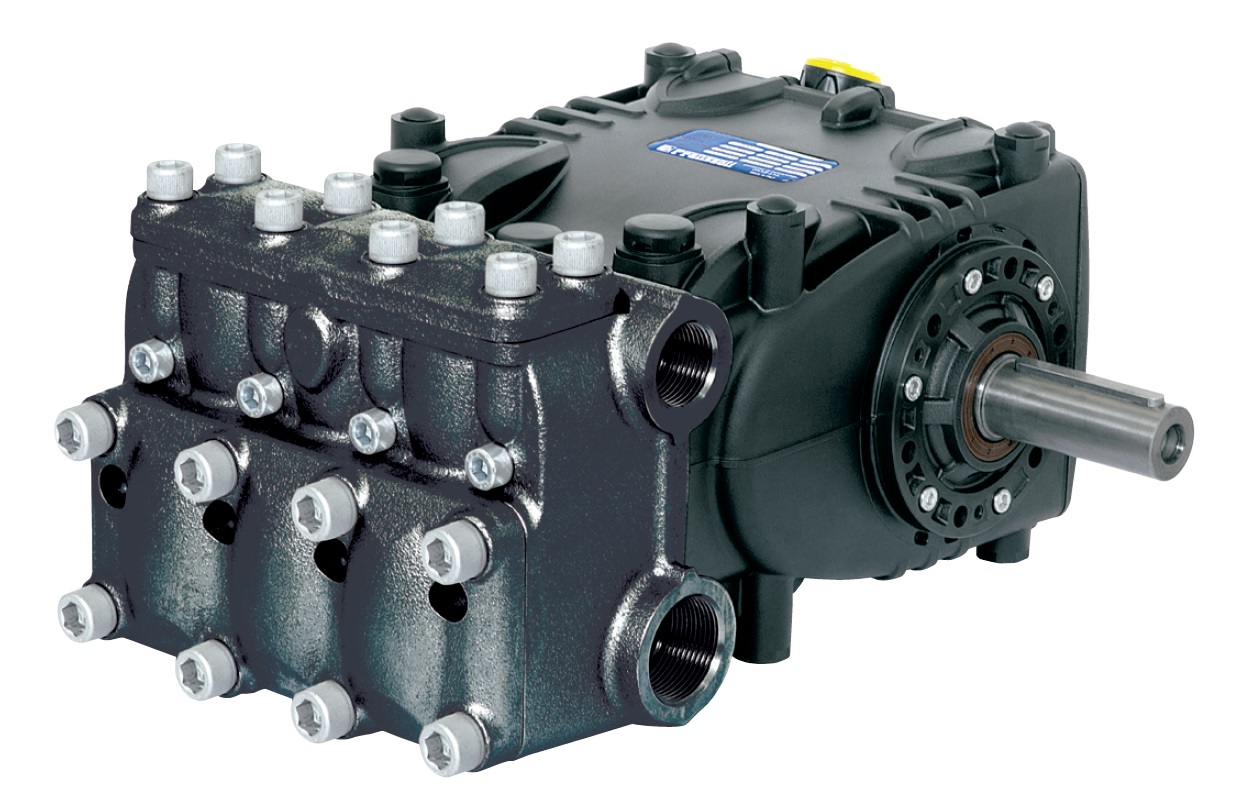

KT L.P. Family

Documenti tecnici

[documenti_tecnici]

Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
KT24	51 / 62	13,5 / 16,3	1450 / 1750	25 / 20	250 / 200	3625 / 2900	33 / 32	24,4 / 23,6	405x340,5x253,5	40	Enter
KT26	60	15.8	1450	25	250	3625	39	28.6	405x340,5x253,5	40	Enter
KT28	70 / 84	18,4 / 22,2	1450 / 1750	20 / 17,5	200 / 175	2900 / 2540	36 / 38	26,7 / 28	405x340,5x253,5	40	Enter
KT30	80 / 96	21,1 / 25,5	1450 / 1750	18 / 14	180 / 140	2610 / 2030	37,4 / 35	27,5 / 26	405x340,5x253,5	40	Enter
KT32	91	24	1450	15	150	2175	35	26	405x340,5x253,5	40	Enter
KT34	103	27.2	1450	15	150	2175	40	29.5	405x340,5x253,5	40	Enter
KT36	115 / 125	30,4 / 33,1	1450 / 1580	12 / 12,5	120 / 125	1740 / 1810	36 / 41	26,7 / 29,9	405x340,5x253,5	40	Enter
KT40	142	37.5	1450	10	100	1450	37	27.1	405x340,5x253,5	38	Enter
