Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
HF18	30 / 38	8,1 / 10,1	800 / 1000	60 / 50	600 / 500	8700 / 7250	48 / 50	35,5 / 36,8	506x367x265,5	65	Enter
HF20	47	12.4	1000	40	400	5800	50	36.8	506x367x265,5	65	Enter
HF22	57	15	1000	35	350	5075	50	36.8	506x367x265,5	65	Enter
HF25	73	19.3	1000	28	280	4060	50	36.8	506x367x265,5	64	Enter
HF28	78	21	850	28	280	4060	42	57	506x367x265,5	64	Enter

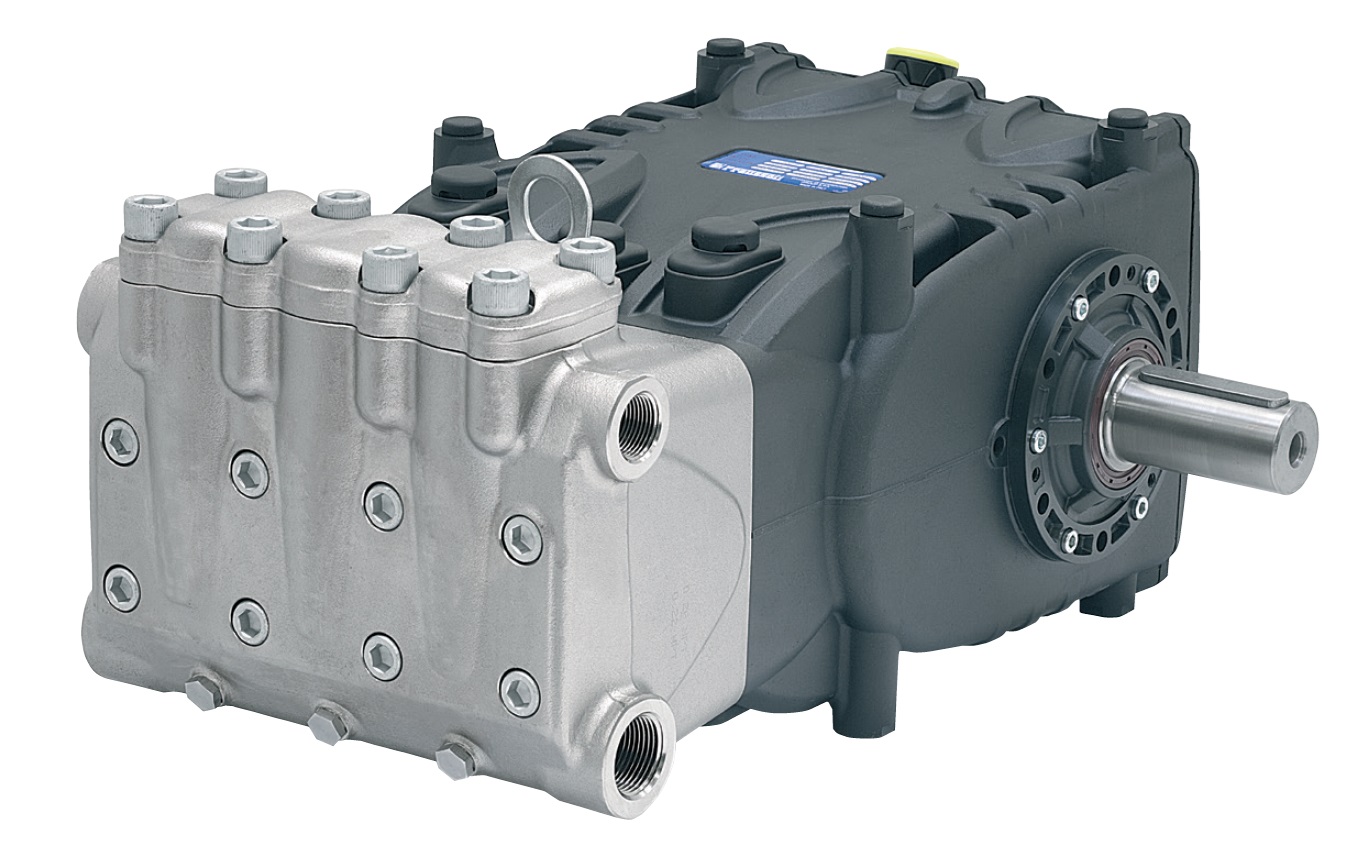

HF Family
