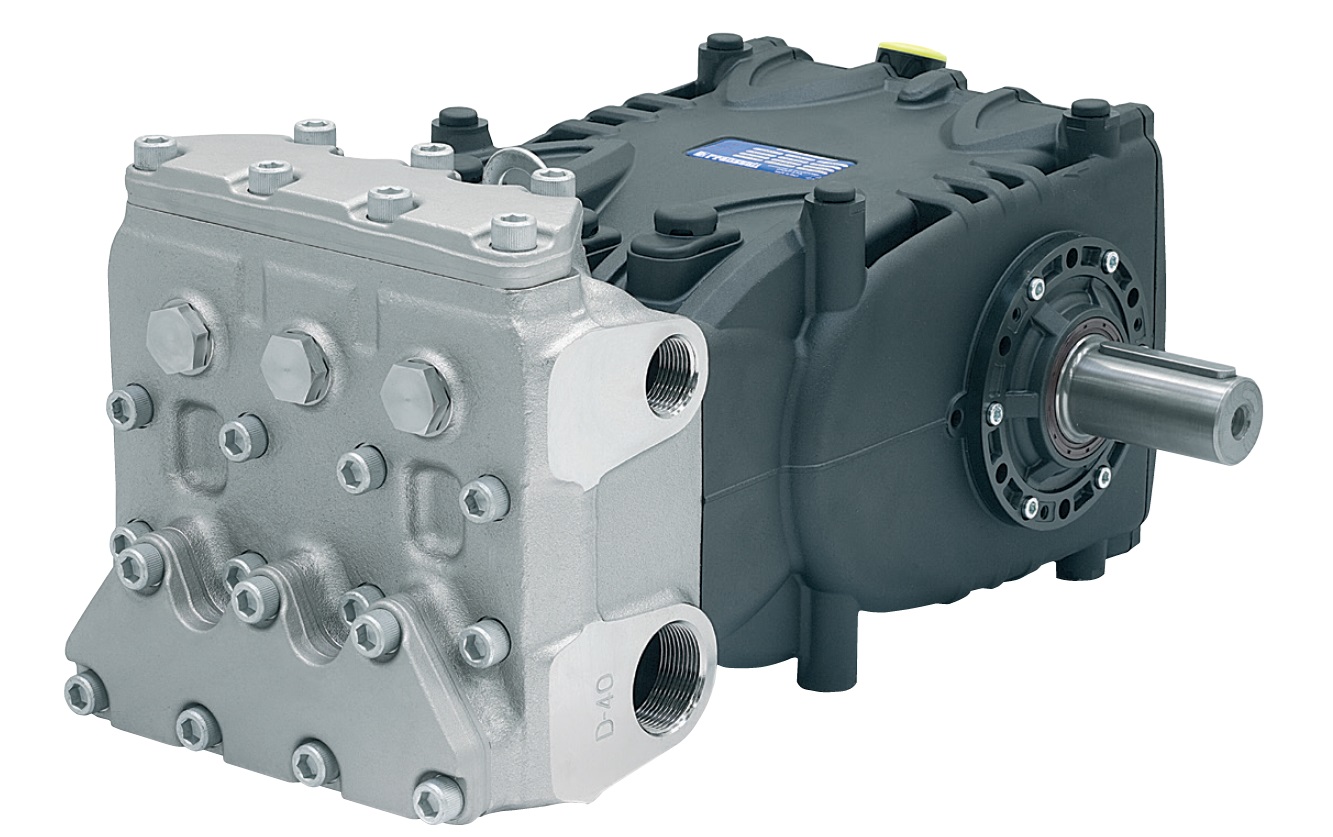

KFR Family

Documenti tecnici

[documenti_tecnici]

Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
KFR25	74	19.5	1000	22	220	3190	42	31	526x367x252,5	72	Enter
KFR28	93	24.5	1000	21	210	3050	50	37	526x367x252,5	72	Enter
KFR30	106	28	1000	20	200	2900	55	40	526x367x252,5	72	Enter
KFR32	120	31.7	1000	18	180	2610	56	41.2	526x367x252,5	72	Enter
KFR36	122 / 137 / 153	32,2 / 36,2 / 40,4	800 / 900 / 1000	16 / 14 / 13	160 / 140 / 130	2320 / 2030 / 1890	51 / 50 / 52	37,5 / 37,5 / 38,2	526x367x252,5	72	Enter
KFR40	170	45	900	11	110	1600	49	36	526x367x252,5	72	Enter
