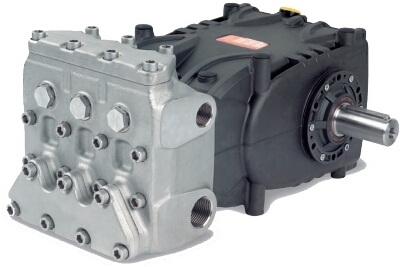

SN71 Family - AISI 420

Documenti tecnici

[documenti_tecnici]

Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
SN7193	93	24.5	1000	21	210	3045	51	37.5	526x367x252,5	68	Enter
SN71106	106	28	1000	20	200	2900	55	40.4	526x367x252,5	68	Enter
SN71153	122 / 137 / 153	32,2 / 36,2 / 40,5	800 / 900 / 1000	16 / 14 / 13	160 / 140 / 130	2320 / 2030 / 1885	51 / 50 / 52	37,5 / 36,8 / 38,2	526x367x252,5	68	Enter
SN71170	170	45	900	11	110	1600	49	36	526x367x252,5	68	Enter
