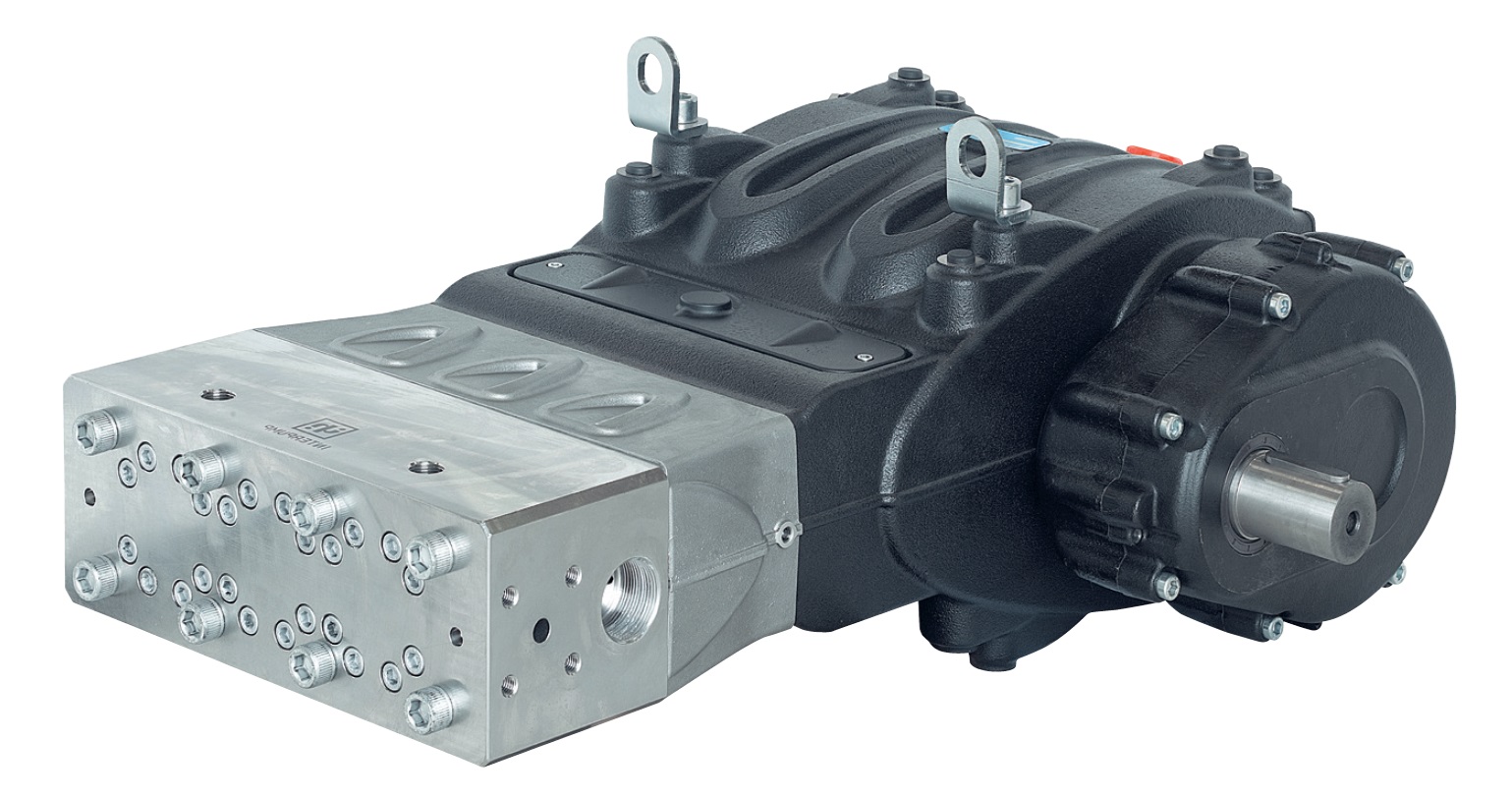

» Products » Plunger Pumps (Water) » Series 73 - 100/150 hp (MW-MW2-MF-MX-MX2-SMH) » SMH Family

| Models | Flow (L/min) | Flow (US Gpm) | Rotation regime (rpm) | Pressure (MPa) | Pressure (bar) | Pressure (psi) | Power (hp) | Power (kW) | Overall dimensions L x l x h (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMH14 | 26 | 6.9 | 1500 / 1800 / 2200 / 2600 | 150 | 1500 | 21750 | 101 | 74 | 882x583x359 | 265 | Enter |
| SMH16 | 34 | 9 | 1500 / 1800 / 2200 / 2600 | 120 | 1200 | 17400 | 106 | 78 | 882x583x359 | 265 | Enter |
| SMH18 | 43 | 11.4 | 1500 / 1800 / 2200 / 2600 | 90 | 900 | 13050 | 101 | 74 | 882x583x359 | 265 | Enter |
| SMH20 | 53 | 14 | 1500 / 1800 / 2200 / 2600 | 75 | 750 | 10875 | 103 | 76 | 882x583x359 | 265 | Enter |
| SMH22 | 64 | 16.9 | 1500 / 1800 / 2200 / 2600 | 60 | 600 | 8700 | 100 | 74 | 882x583x359 | 265 | Enter |
| SMH24 | 76 | 20.1 | 1500 / 1800 / 2200 / 2600 | 50 | 500 | 7250 | 99 | 73 | 882x583x359 | 265 | Enter |
