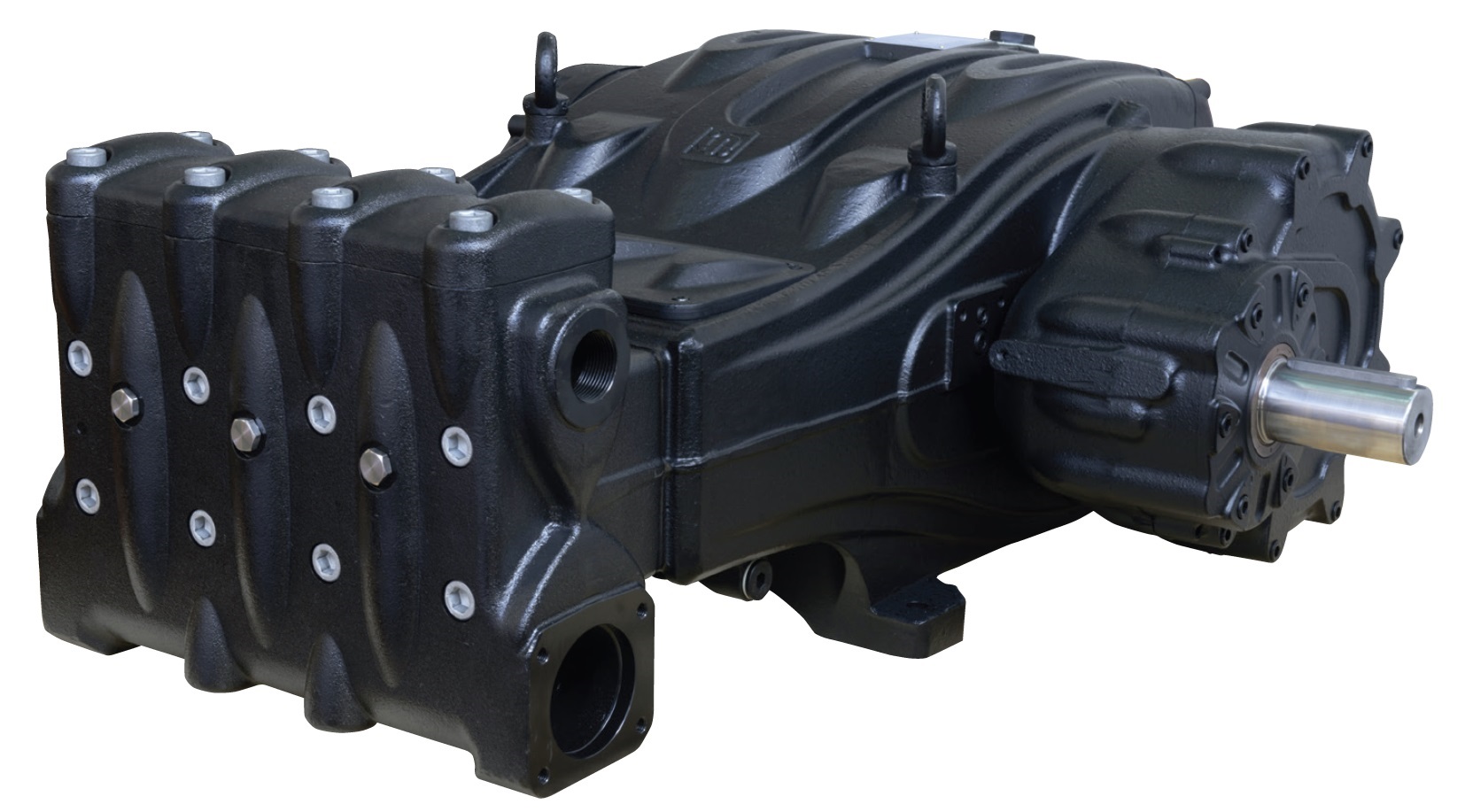

MXSR Family

Documenti tecnici

[documenti_tecnici]

Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
MXSR40	216	57.1	1500 / 1800 / 2200	40	400	5800	225	165	980x862x405	533	Enter
MXSR45	274	72.3	1500 / 1800 / 2200	30	300	4350	213	157	980x862x405	533	Enter
MXSR50	338	89.3	1500 / 1800 / 2200	25	250	3625	219	161	980x862x405	533	Enter
MXSR55	409	108	1500 / 1800 / 2200	20	200	2900	212	156	992,5x862x424,5	548	Enter
MXSR60	487	129	1500 / 1800 / 2200	17	170	2465	215	158	992,5x862x424,5	548	Enter
MXSR65	571	151	1500 / 1800 / 2200	15	150	2175	223	164	992,5x862x424,5	548	Enter
