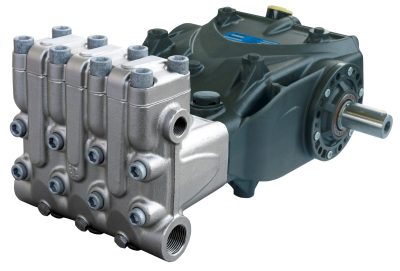

SN6418

Models	Flow (L/min)	Flow (US Gpm)	Rotation regime (rpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	Power (hp)	Power (kW)	Overall dimensions L x l x h (mm)	Weight (kg)
SN6418	39 / 47	10,3 / 12,4	1450 / 1750	32	320	4640	32,4 / 39,1	23,8 / 28,7	444x308,5x198	35

Spare Parts List

Hollow shaft (spline) – vers. I

Male shaft (key)

Performance curves

Performance curves

Overall dimensions

Hy-Pack version – GAS + piston motor 47cc

Hy-Pack version – GAS + gear motor 70cc

Hy-Pack version – GAS + piston motor 64cc

Hollow shaft (spline) – vers. I

Male shaft (key)

CAD Files

Repair manuals

Use manuals

Use and maintenance manual

Generic pumps manual
