Models	Flow (L/min)	Flow (US Gpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	MAX Temperature (°C)	MAX Temperature (°F)	Weight (kg)	Weight (lbs)	For pumps
S723P	230	61	70	700	10150	85	185	1.7	3.8	KE - KT - KF - HF - KS	Enter
S1503P	30	7.9	150	1500	21755	40	104	1	2.2	VFH - VKH - SMH14	Enter
S1510P	135	35.6	150	1500	21755	40	104	2.7	5.95	SMH - SKH	Enter
S1520P	240	63	150	1500	21755	85	185	8	17.8	SR H.P. - TR H.P.	Enter
S455P	600	158	45	450	6525	85	185	3.2	7.2	MW - MF - MX - MK2 - MK2S - LK	Enter
S4090P	950	251	40	400	5800	85	185	20	45	SR L.P. - TR L.P.	Enter

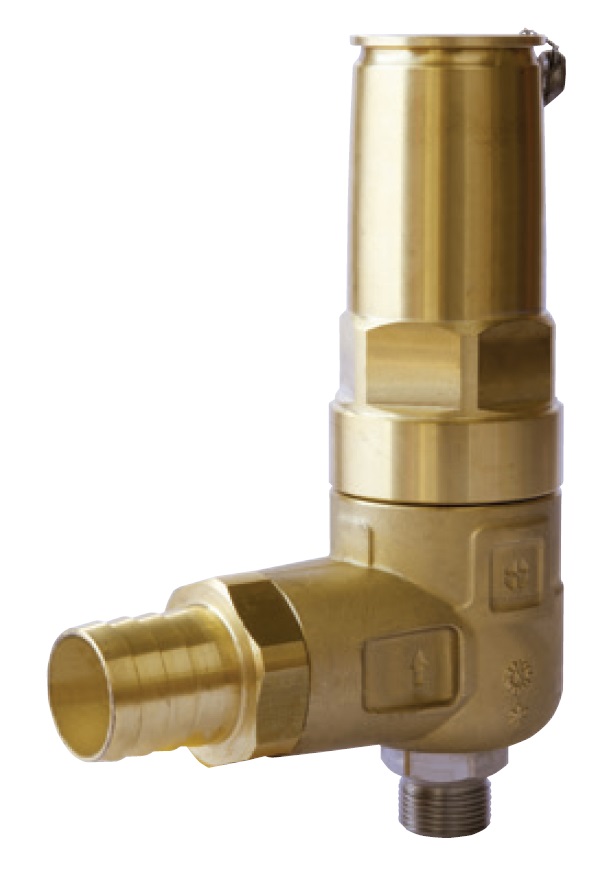

Certified Safety Valves
