Models	MIN flow (US Gpm)	MAX flow (L/min)	MAX flow (US Gpm)	MAX Pressure (MPa)	MAX Pressure (bar)	MAX Pressure (psi)	MAX Temperature (°C)	MAX Temperature (°F)	Weight (kg)	Inlet	Length (mm)	Length (in)
RMAX600	4.2	16	4.2	60	600	8700	85	185	0.4	G 1/4"	100	3.9	Enter
RMAX750	13.2	50	13.2	75	750	11000	60	140	1	G1/2" (MAX 500 bar) / G 3/8" / RC 3/8" / M18x1,5	139	5.47	Enter

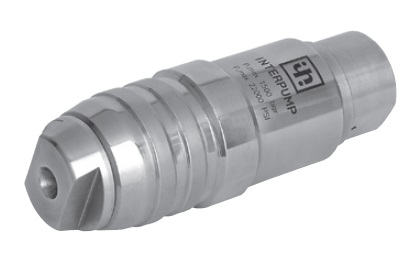

RMAX1500	11.1	42	11.1	150	1500	22000	60	140	1.2	M14x1,5 LH (Std) / M18x1,5 - RC 3/8" (Optional)	150	5.9	Enter

Rotating Nozzles
