Models	Flow (L/min)	Flow (US Gpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	MAX Temperature (°C)	MAX Temperature (°F)	Weight (kg)	Weight (lbs)	For pumps
R1X/200	110	29	20	200	2900	85	185	2.5	5.5	SS70 - SN70 - SN71 - HFN	Enter
R1X/400	110	29	40	400	5800	85	185	2.8	6.2	SS70 - SN70 - SN71 - HFN	Enter
R1X/600	70	18.5	60	600	8700	85	185	2.8	6.2	SS70 - SN70 - SN71 - HFN	Enter

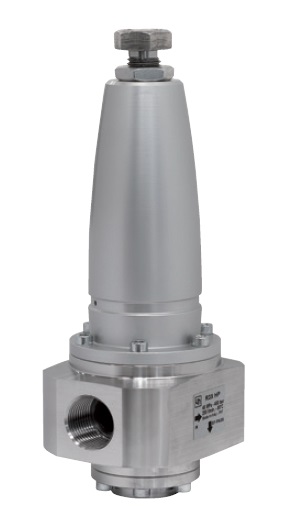

R3XLP	600	158	23	230	3336	85	185	6	13.2	MWN - LKN	Enter
R3XHP	390	103	45	450	6527	85	185	5.3	11.7	MWN - LKN	Enter

S. S. Regulating Valves
