Unloader Valves

Documenti tecnici

[documenti_tecnici]

Models	Flow (L/min)	Flow (US Gpm)	Pressure (MPa)	Pressure (bar)	Pressure (psi)	MAX Temperature (°C)	MAX Temperature (°F)	Weight (kg)	Weight (lbs)	For pumps
BH210	10 ÷ 110	2,6 ÷ 29	21	210	3045	85	185	1.95	4.3	KE - EV - KT	Enter
H560	10 ÷ 60	2,6 ÷ 15,8	50	500	7250	60	140	2.7	5.95	KE - EV - KT - HF	Enter
RA2	230	61	21	210	3045	85	185	4.8	10.6	KT - KF - KS	Enter
RA2L	230	61	21	210	3045	85	185	5.3	11.7	KT - KF - KS	Enter

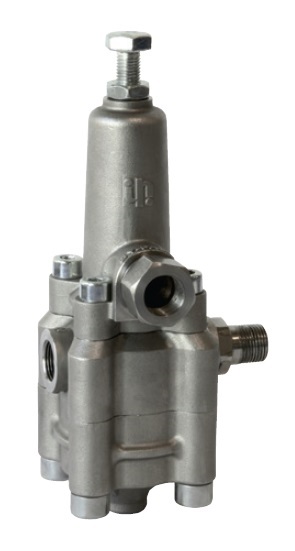

K10.0	12 ÷ 18	3,2 ÷ 4,7	60	600	8700	60	140	2.5	5.5	KT16 - KT18 - HF18	Enter
K10.1	19 ÷ 26	5 ÷ 6,8	60	600	8700	60	140	2.5	5.5	KT16 - KT18 - HF18	Enter
K10.2	27 ÷ 34	7,1 ÷ 8,9	60	600	8700	60	140	2.5	5.5	KT16 - KT18 - HF18	Enter
K10.3	35 ÷ 40	9,2 ÷ 10,5	60	600	8700	60	140	2.5	5.5	KT16 - KT18 - HF18	Enter
BKX600	15 ÷ 60	3,9 ÷ 15,85	60	600	8700	60	140	7.74	17.03	KE - KT - HF	Enter
H1520	200	52.8	15	150	2175	85	185	2	4.4	KE - KT - KF - KS - MW	Enter
H2820	200	52.8	28	280	4060	85	185	3.45	7.6	KF - HF - KS - MW	Enter
H288	20 ÷ 80	5,3 ÷ 21,1	28	280	4060	85	185	1.3	2.87	47 66 64 69 70 KE EV SN64 KT	Enter
H288US	20 ÷ 80	5,3 ÷ 21,1	28	280	4060	85	185	1.3	2.87	47 66 64 69 70 KE EV SN64 KT	Enter
H168	20 ÷ 80	5,3 ÷ 21,1	16	160	2320	85	185	1.3	2.87	47 66 64 69 70 KE EV SN64 KT	Enter
H168US	20 ÷ 80	5,3 ÷ 21,1	16	160	2320	85	185	1.3	2.87	47 66 64 69 70 KE EV SN64 KT	Enter
